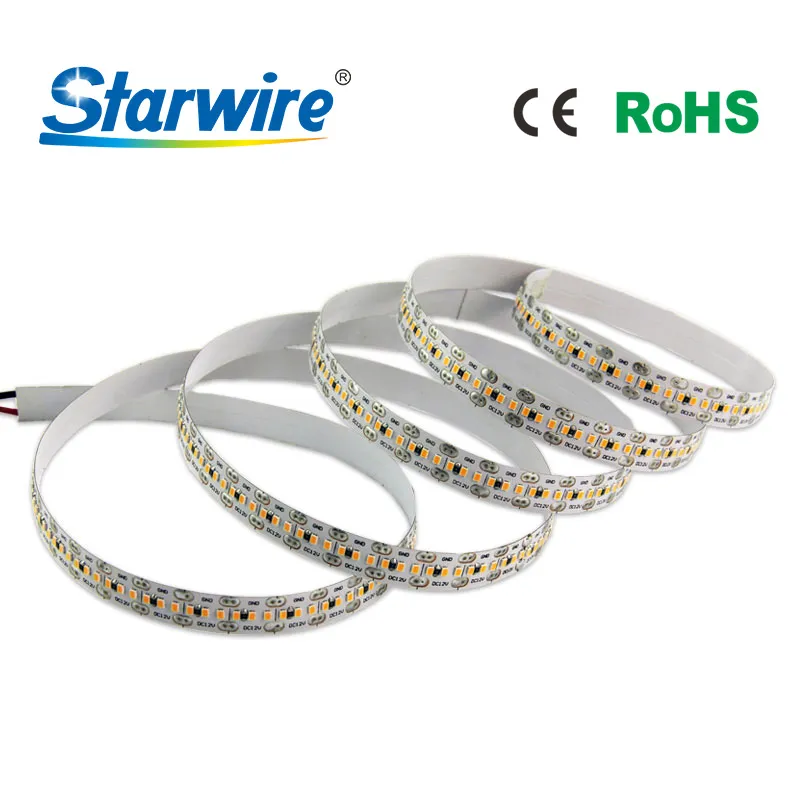

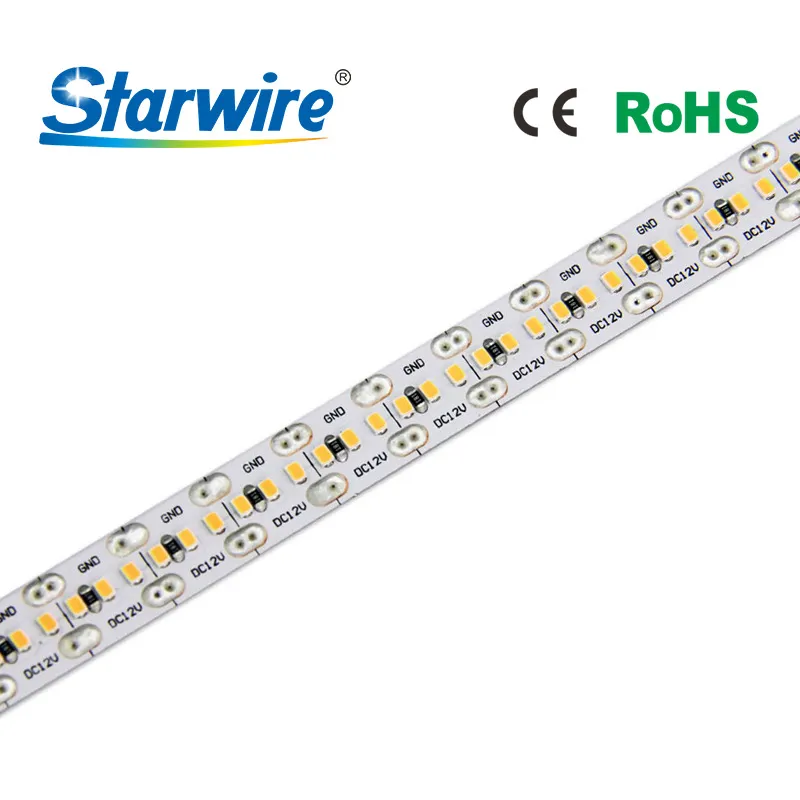

High Density 300 LEDs SMD2216 Strip Light with Ce/RoHS for 1715b 2315 1919 Aluminum Profile
High Density 300 LEDs SMD2216 Strip Light with Ce/RoHS for 1715b 2315 1919 aluminum profile Features:1. Adopt top SMD2016.High brightness.2,Tick double layer 2 oz copper PCB for excellent thermal management(3-step Macadam).3,Single Bin led selection to ensure color consistence4. DC12V 24V low voltag......
Send Inquiry
Product Description
Features:
1. Adopt top SMD2016.High brightness.
2,Tick double layer 2 oz copper PCB for excellent thermal management(3-step Macadam).
3,Single Bin led selection to ensure color consistence
4. DC12V 24V low voltage, high security.
5. Low power consumption, long life, free maintenance
6. Cuttable length: every 3 leds cuttable for DC12V type,every 6 leds cuttable for DC24V type
7.3M adhesive tape easily for fixing
8. CE,RoHS Certificated
9. Life span: >50000hours
10.Small size led can achieve more leds per meter

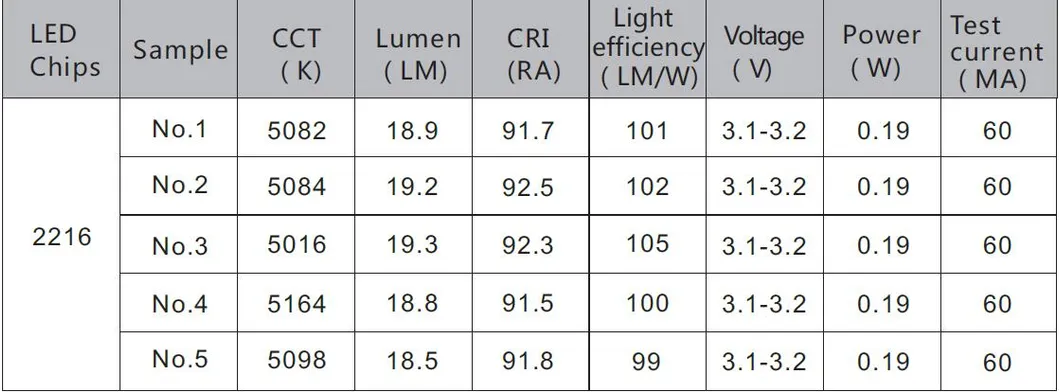

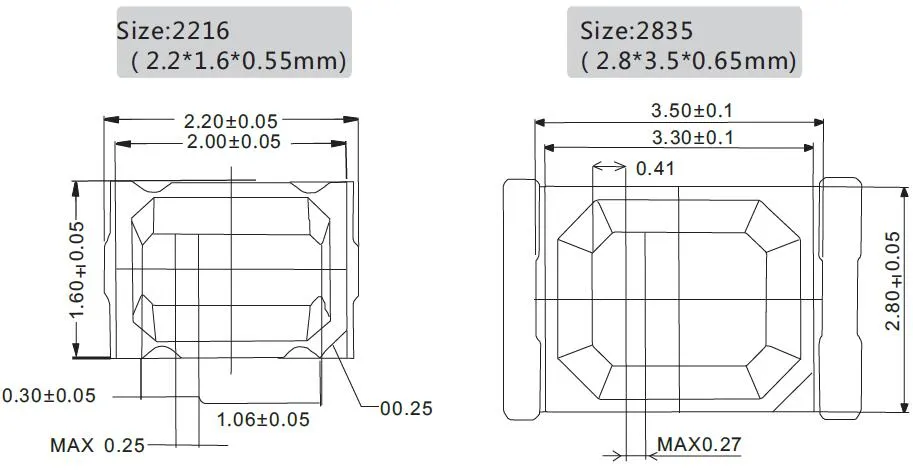

SMD2216 BASIC SERIES
Description
1.Mini size
2.High brightness:can reach 18-20lm/pcs; 100lm/W
3.High CRI, RA>90
4.Low cost.
5.Good performance in color consistency, suitable for LED strips application.
6.Rich color choices and could keep the color consistency in different orders.

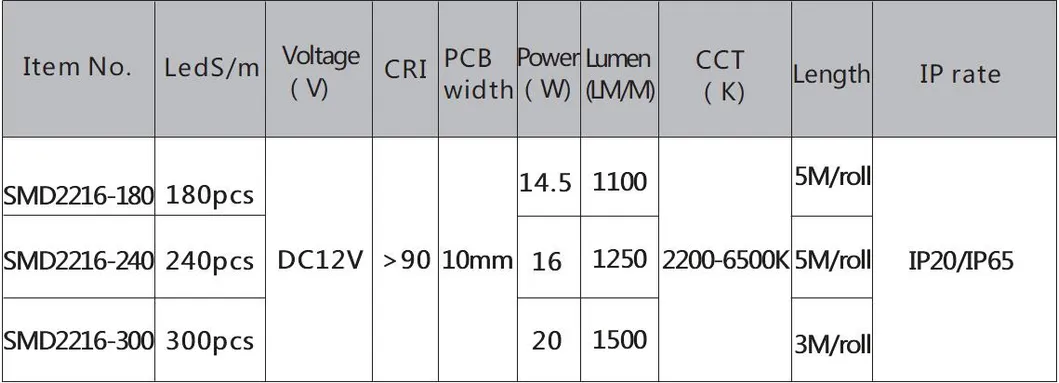

Specification
Product Name | 2216-300 Flex Led Strips |
Item NO. | SW-F2216X150-WF0-3M-12 |
CCT | 2200k-6500k |
Lumen | 1500 lm/m |
Input Voltage | DC12V/24V |
Power | 20w/m |
IP Grade | IP20/IP65 |
LED Quantity | 300pcs |
CRI | >90 |
PCB Width | 10mm |
Length | 5m/roll |
Features:
a. High density line array, it has excellent performance in
b. luminous uniformity.
c. And it could achieve low height linear lighting.
d. For example, SMD2216-240 led strip matches with 1708 aluminum
e. profile (with the PMMA cover), we could not see any light spots.
f. Designed for 300 leds/m, 10mm per cuttable, cutting is more flexible.
Good heat dissipation.

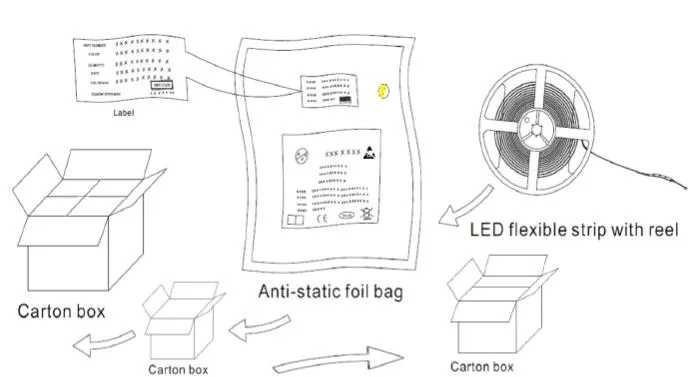

Packing
| Size of the reel | 178mm |
| Size of the anti-static package | L215*W240*H0.25mm |
| Size of the outer box | L462*W310*H278mm |
| 5m/reel,1 roll in an anti-static bag, 50 bags per one inner carton, 100 bags in an outer box | |
Information of our company

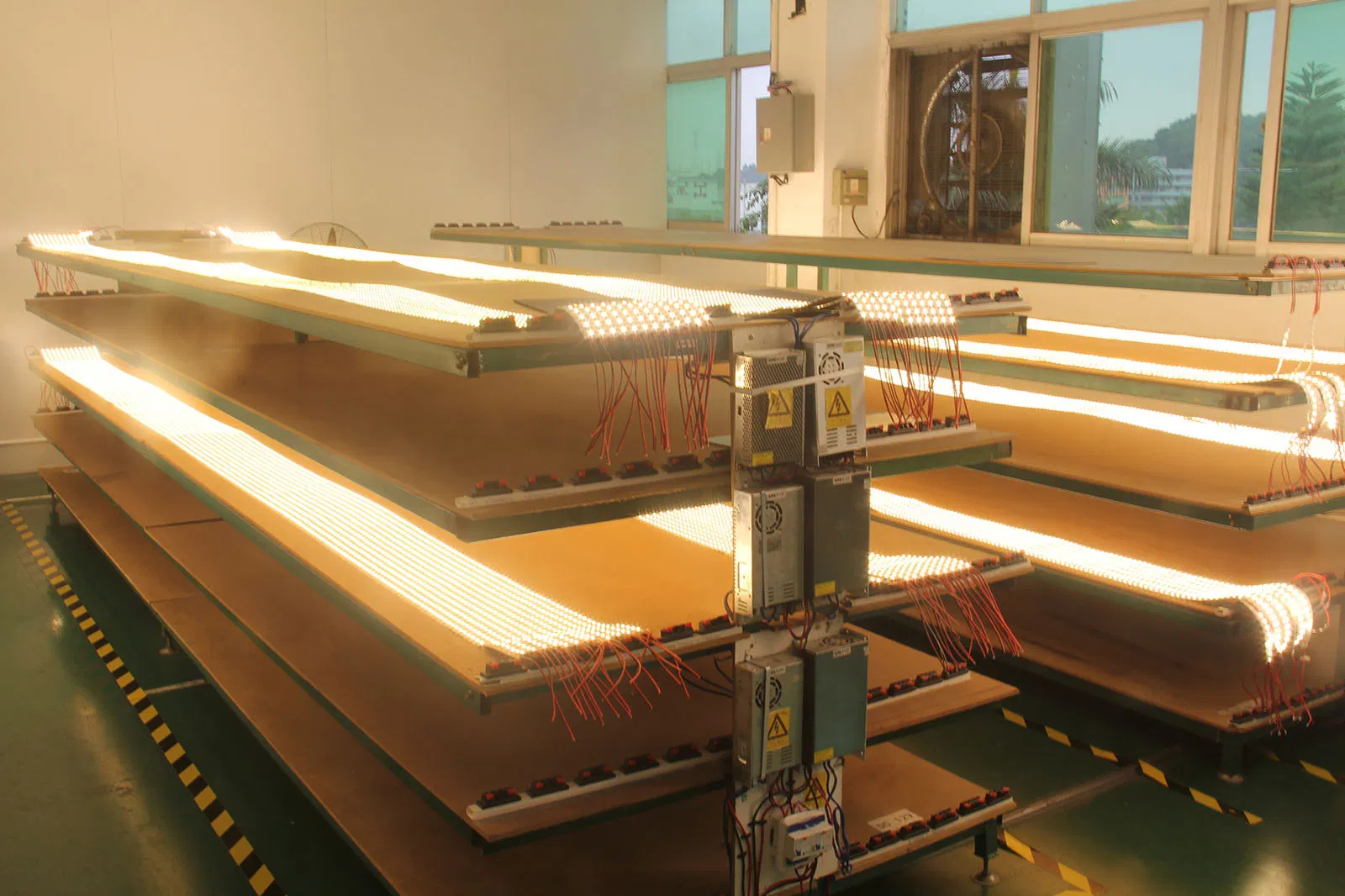

Shenzhen Starwire Lighting Co., Limited was set up in 2009. Now we focus on two products: LED Strip Light & LED Downlight . We have two product department specializes in these two categories of products. Our annual turnover is 10 million US dollars. Now we have 3600 square merer factory and over 100 workers. We have goniophotometer, intergrating sphere, Humidity Chamber and other testing equipment.
STARWIRE is a company combing R&D, produce sales together, our factory obtained SGS, BV certifactions, and out products have passed UL, CE, RoHS, TUV, SAA cetification, our products are selling well in Europe, North America, Australia and other countries.
We love product, not aggressive, not convergence, but strive to do a small but beautiful factory.
